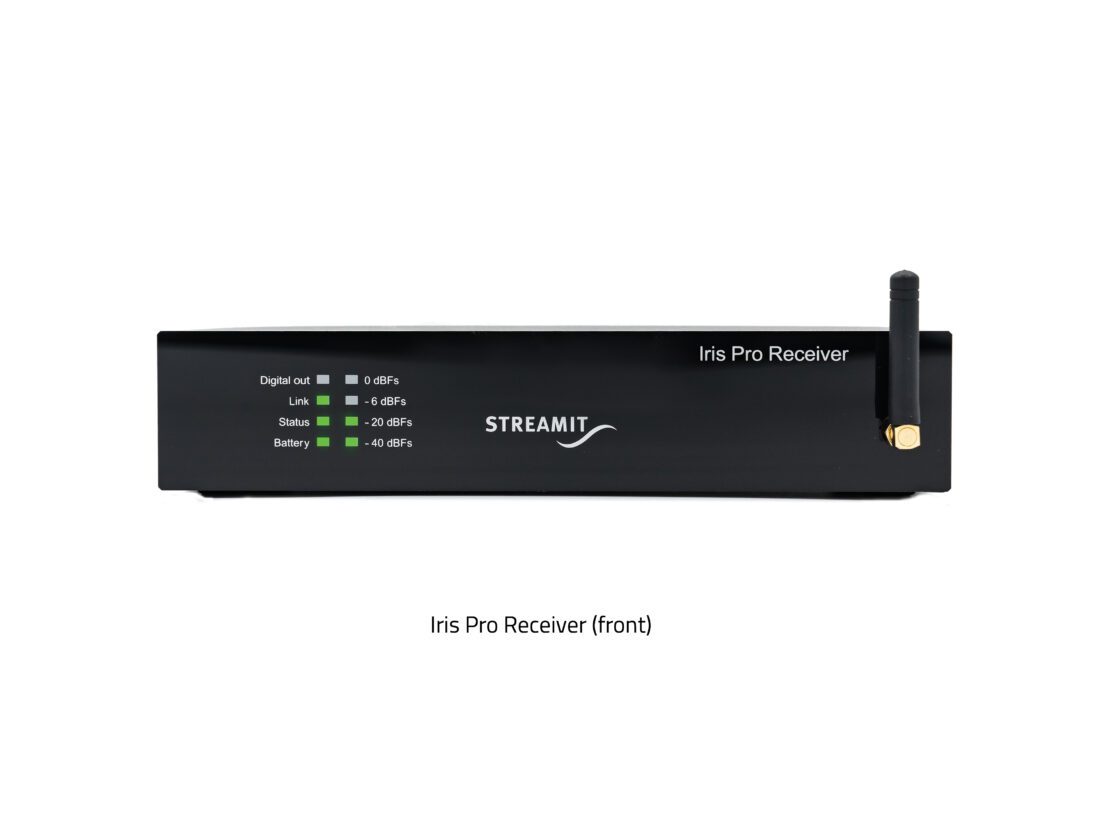

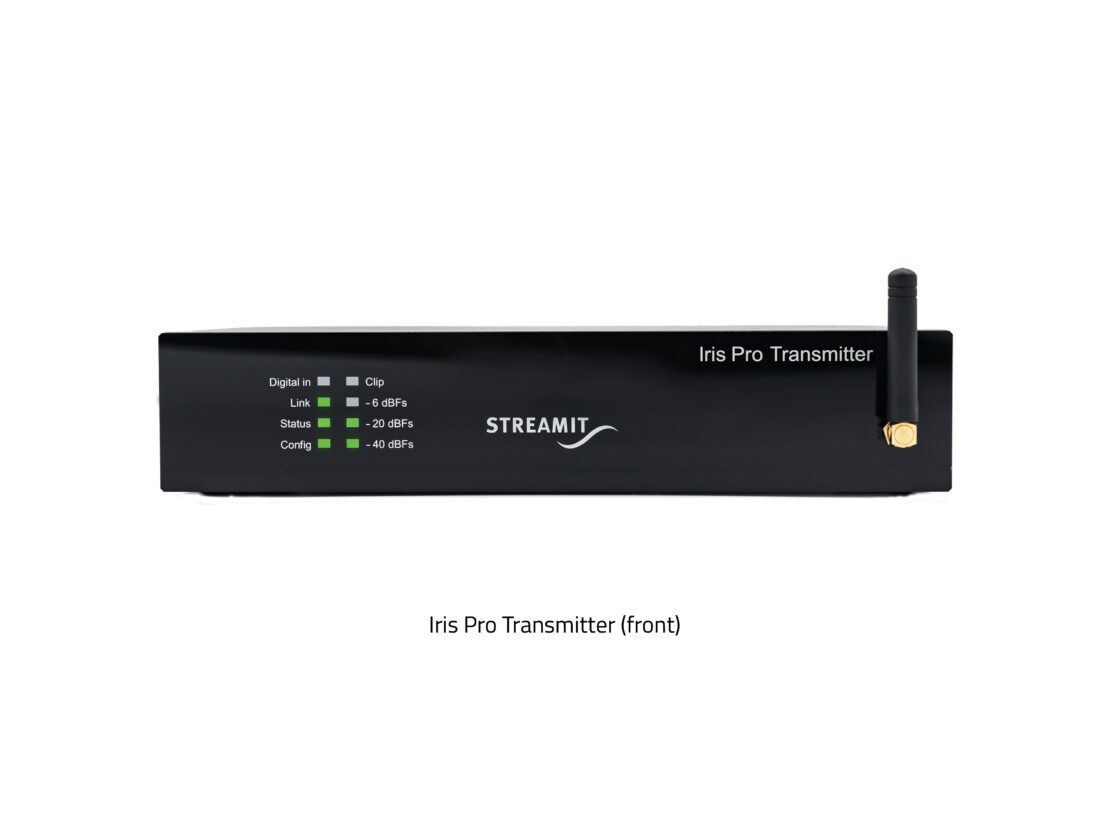

Iris Pro Transmitter and Iris Pro Receiver

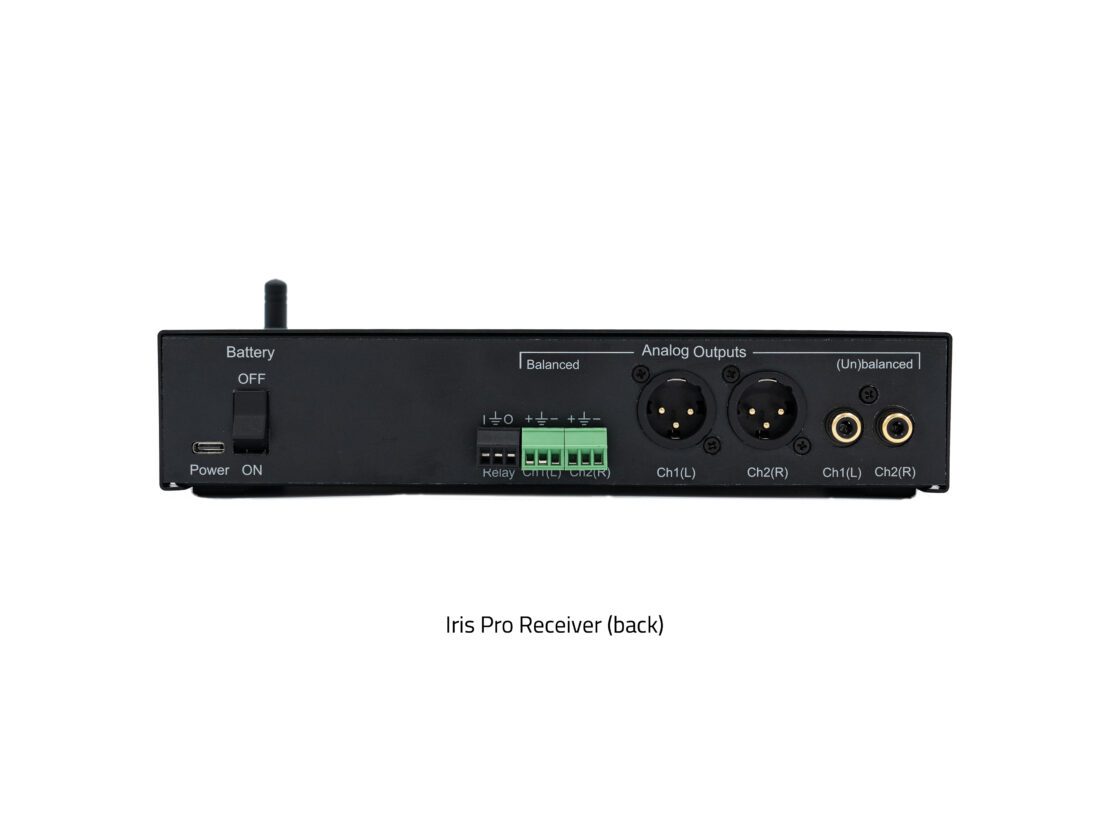

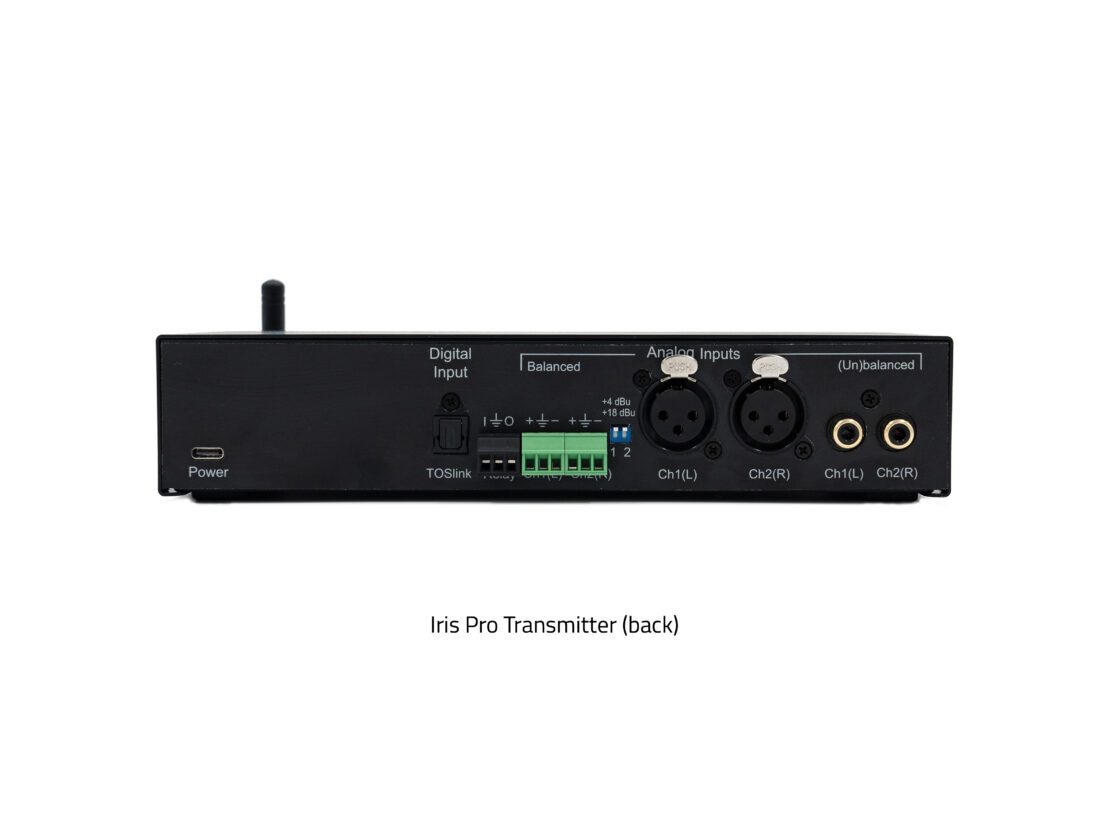

The Iris Pro Transmitter (Receiver) is equipped with an array of balanced analog inputs (outputs): RCA, XLR and Terminal Block. The Iris Pro Transmitter also has a TOSlink digital input. Supporting high-resolution audio up to 96 kHz, 24 Bit. This versatility allows for seamless integration with both pro audio and consumer-level devices, catering to a broad spectrum of audio applications.
Designed with precision and ease of use in mind, the Iris Pro Series devices boasts an impressively low latency of just 16.5ms, making it ideal for applications where audio synchronization is critical, such as live performances and professional sound setups. Its robust construction and intuitive interface ensure reliability and user-friendliness for audio professionals.
From the app as well as on the devices itself, you can monitor the connection quality of all connections in the network. Operating at a dedicated frequency, the networks are immune to interference from mobile, Wi-Fi and Bluetooth. For total independence, the receiver can work on four AA batteries.
Key features
- Extensive range outdoors as well as indoors
- Up to 10 audio networks per site, with up to 50 receivers per network
- Two-channel audio operation
- 20 Hz – 20 kHz High-quality audio
- Configuration via app
- Rack mountable; half 19″width, 1 unit height
- Low power consumption
- Mains powered (Transmitter)
- Mains or Battery powered (Receiver)
- Digital I/O for switching of external equipment
Key specifications
-
Wireless
- Wireless technology DECT 1.9 GHz
- Reception range 50m indoors to 300m outdoors
- Latency 16.5ms
- Synchronicity between receivers 0.15ms
-
- Antenna Internal, external
-
Analog audio
- Latency 16,5ms
- Frequency range 20 Hz to 20 kHz
- Audio channels 2 (balanced)
- Input level (Transmitter) +4/+18dBu (switchable)
- Output level (Receiver) 4dBu (max)
- Signal-to-noise ratio (SNR) > 90 dB
- THD+N (@ 1 kHz) <0,01%
-
Digital audio input
- Frequency range 20 Hz to 20 kHz
- Input channels 2
- Codec support PCM
- THD+N (@ 1 kHz) <0,01%
- Signal / noise > 90 dB
- Input resolutions 16-24 bit
- Sample rates 44.1, 48, 88.2, 96kHz
-
Electrical
- Power supply 5VDC adapter, 1A
- Operating voltage 100~240VAC/50~60Hz
- Power consumption (AC) Max 5W, <0,5W (idle)
- Batteries (Transmitter) 4xAlkaline AA (option)
-
Environmental and safety
- Operating temperature -20°C to 50°C
- Humidity 30% to 90% RH, non-condensing

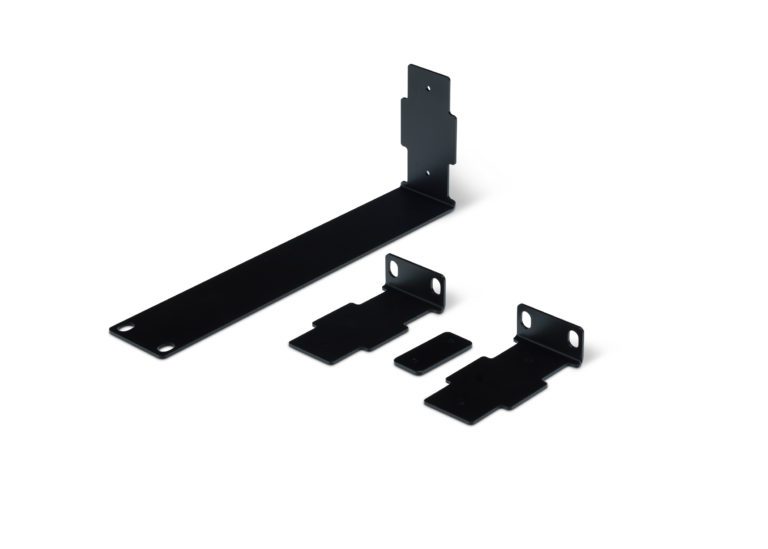

Streamit rackmount kit The Iris Pro Series is designed for easy mounting in conventional 19 inch racks. For rack mounting, the Streamit Rackmount kit is required. With one kit, it is possible to mount either one or two Iris Pro and/or Lisa devices in a 19 inch rack.
Open indoor space
Iris is very suited for audio distribution in large indoor spaces where the layout of the venue may change. Setup a DJ, music front end like a PC or other sources anywhere you like and distribute it to portable speakers at any location for hassle free, fast setup.
No wires to pull, no trip hazards, worry free setup. Have complete freedom on where to place tour equipment. No ground loops, no level loss, just audio where you need it. Do you want the DJ in the middle of the auditorium? At the far end? You name it, you got it. Forget about transformers needed between music systems on different mains sections.
Wireless distribution without the pitfalls of other wireless attempt. Rock-solid connection and unaffected by wifi and Bluetooth congestion.

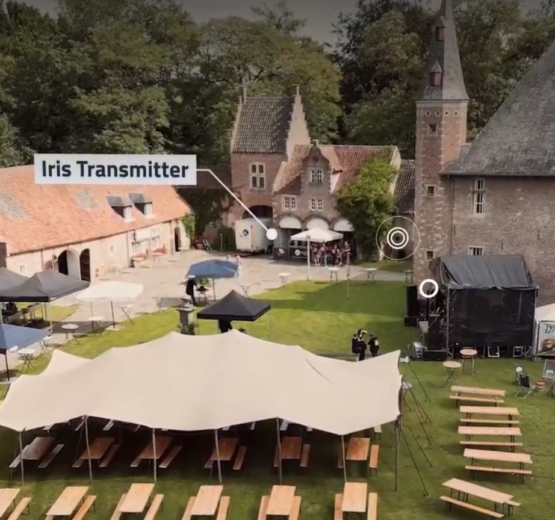

Outdoor events
At an outdoor event, considerable (audio) distances often must be bridged. In addition, there are sometimes obstacles on event grounds such as a ponds, hills, or pits. Think of festivals or golf tournaments. It is then quite a challenge to work with audio cables. In addition, laying audio cables takes a lot of time. Even if they need to be cleaned up again.
With the Streamit Iris, obstacles, costly installation time and clean-up time are a thing of the past. Because you can quickly connect and disconnect the Iris. The audio transmission also remains stable due to the powerful DECT technology.
If you connect an Iris transmitter to an audio source – for example an audio player or PC with a business music account – it can wirelessly transfer audio to any speaker with a built-in amplifier to which an Iris receiver is connected.
Don’t worry about the distance Iris can bridge. The basic range is 50m (indoors) and can be extended up to 300m (outdoors) with the help of antennas.

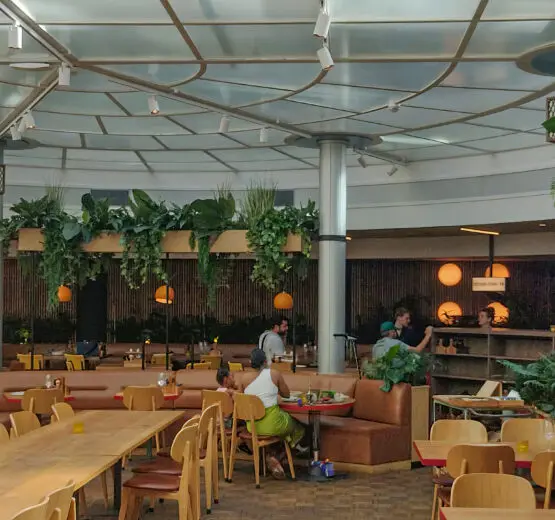

Restaurant
Pesca, a new restaurant in a historic landmark building in Rotterdam opened its doors recently using a popular consumer grade system using their Wi-Fi network. From the beginning the system was unsatisfactory in a professional environment because individual loudspeakers were continuously being dropped from the network, with loudspeakers throughout the venue spontaneously turning off and on. Very typical network issues, a lot of speakers dropped audio each time a new track started.
The supplier nor manufacturer could not solve the issue, so finally they turned to a consultant for advice. As the original manufacturer could not solve the issue, and the issue was with the product, the solution left was a completely new system.
The choice fell on custom built speakers that complemented the historic interior with hand veneered housings and custom 3D printed fronts combined with Iris.
Now the installation is running smoothly without any visible wires. Customers can now enjoy their unique concept with perfect audio.
Restaurant with outdoor terrace
The Streamit Iris is the perfect solution for restaurants that want to play the same music inside the restaurant and outside on the terrace. Installing an audio cable, which guests can trip over and which disfigures the building, will then be a thing of the past.
If you connect an Iris transmitter to an audio source – for example an audio player or PC with a business music account – it can wirelessly transfer audio to any speaker with a built-in amplifier to which an Iris receiver is connected. Don’t worry about the distance Iris can bridge. The basic range is 50m (indoors) and can be extended up to 300m (outdoors) with the help of antennas
Store
For clothing stores, supermarkets, hardware stores and other types of shops, the Streamit Iris is the perfect wireless audio solution. By connecting an Iris transmitter to an audio source – for example an audio player or PC with a business music account – you can easily transfer music, announcements and commercials wirelessly to all speakers in the store. All you need are powered speakers and a built-in amplifier to which an Iris transmitter is connected.
The number of speakers and the distance to the speakers is no problem for Iris. The basic range starts at 50m (indoors) and can be extended to 300m (outdoors) with the help of directional antennas! And the number of speakers that can be connected with one Iris transmitter in 1.000 pieces.
Installing audio cables and drilling into walls are a thing of the past. This saves a lot of valuable installation time. And for monumental buildings, it is saved by ugly holes.
