Create a wireless loudspeaker solution with virtually no time to market

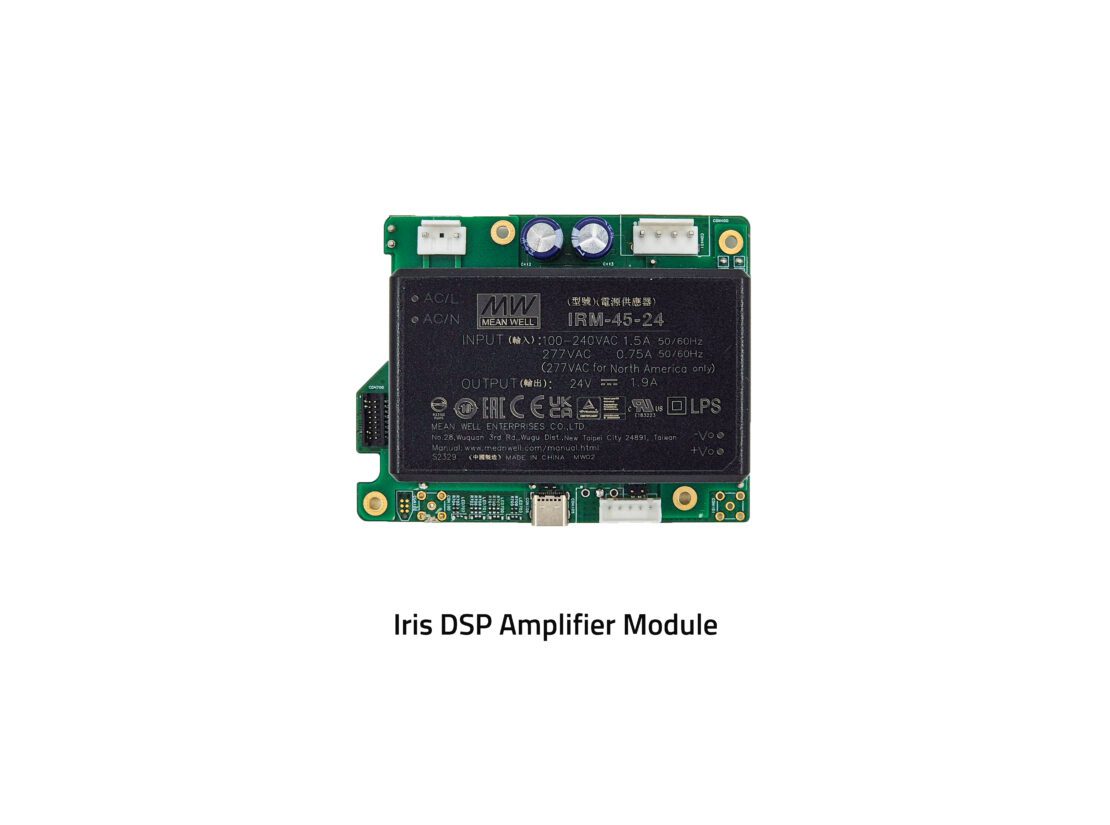

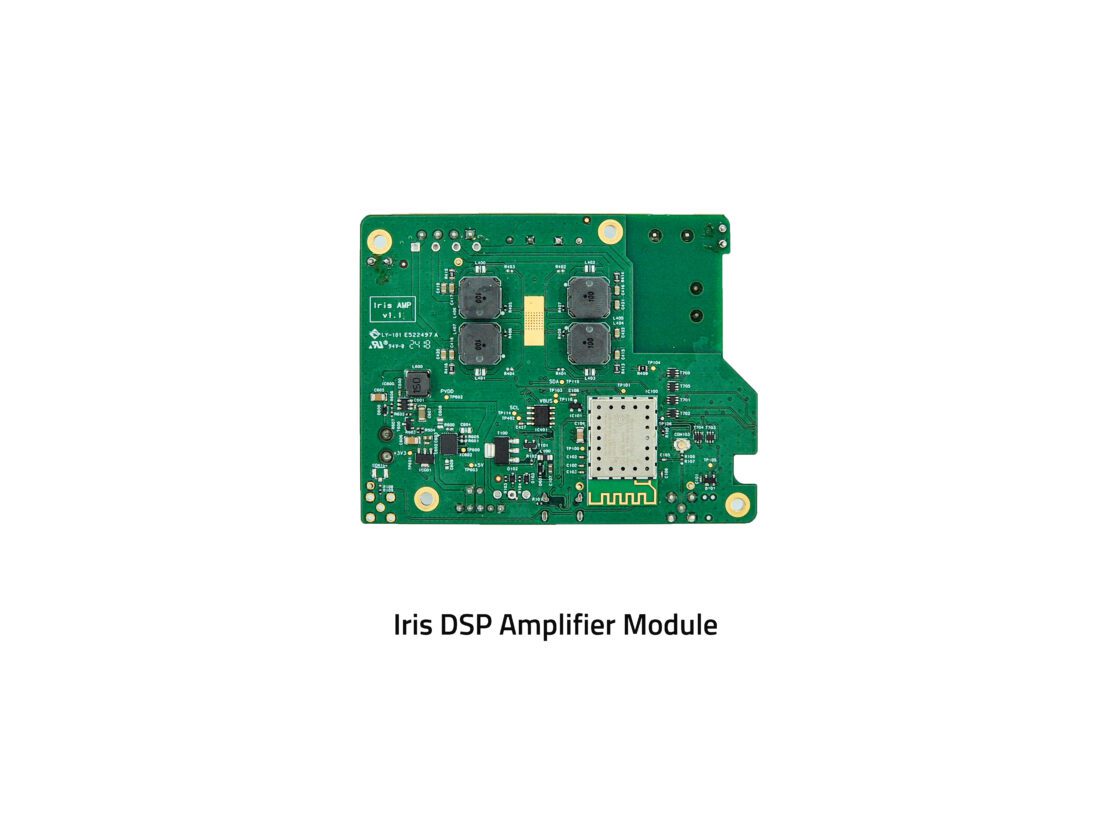

The Iris DSP Amplifier Module has an integrated Digital Signal Processor (DSP) that can be adapted to your loudspeaker design. With advanced features like crossover (X-over) control, limiters, Parametric Equalizer (PEQ), and delay adjustments, you can fine-tune your sound to perfection and create active loudspeakers that cannot be overloaded.
Designed for effortless integration, the Iris DSP Amplifier Module enables you to transform your speaker into an active, wireless powerhouse.
Up to 10 Iris audio networks with a maximum of 50 receivers will coexist at the same site. Operating at a dedicated frequency, the networks are immune to interference from mobile, Wi-Fi and Bluetooth.

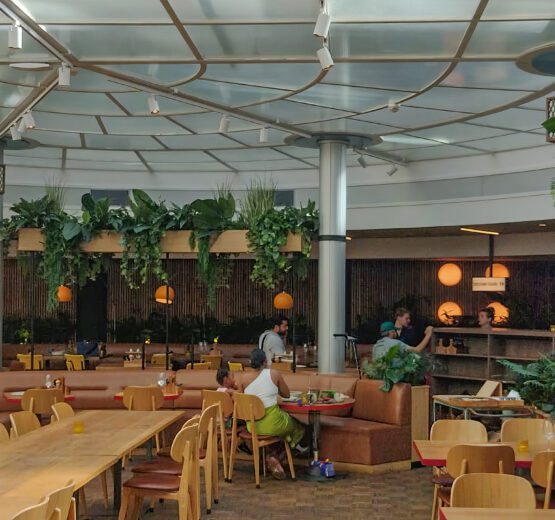

Displayed with the optional battery pack (*) for true wire free use. Set it outside in a hospitality role for a whole day of information to arriving guests.
(*) In development
Key features
- 2×50 watt amplifier
- Powerful DSP with PEQ, crossover, limiter and delay
- Compatible with Iris (Pro) Transmitter
- Extensive range outdoors as well as indoors
- Up to 10 audio networks per site, with up to 50 receivers per network
- Rock solid reliability
- Two-channel audio operation
- 20 Hz – 20 kHz High-quality audio
- Configuration via app
- Low power consumption
- Mains or Rechargable Battery powered (*)
- Digital I/O for switching of external equipment
- (*) in development
Key specifications
-
Wireless
- Wireless technology DECT 1.9 GHz
- Reception range 50m indoors to 300m outdoors
- Latency 16.5ms
- Synchronicity between receivers 0.15ms
-
- Antenna Internal, External
-
Analog audio
- Max Output Power @4-8 Ω 2x50W
- Frequency range 20 Hz to 20 kHz
- Audio channels 2
- Signal-to-noise ratio (SNR) > 90 dB
- THD+N (@ 1 kHz) <0,1%
-
Audio DSP
- About 100 configurable biquads
- Volume control / limiter
- Dynamic range compressors
- Multiband DRC
- Dynamic EQ
- Delay up to 1×20 ms or 2x10ms
- X-over
-
Electrical
- Power supply Integrated
- Operating voltage 100~240VAC/50~60Hz
- Power consumption (AC) Max 45W, <1W (idle)
-
Environmental and safety
- Operating temperature -20°C to 50°C
- Humidity 30% to 90% RH, non-condensing
